On-Board Air System (cont')
 |

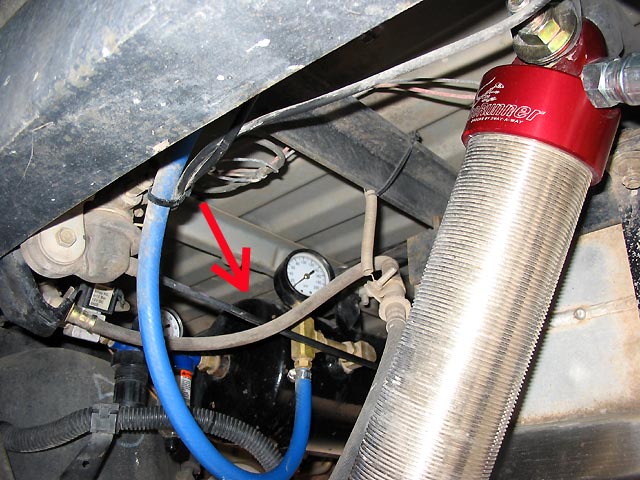

After the tee for the QD air fitting, the air line travels forward to an air storage tank that is mounted in front of my auxiliary fuel tank. |
 |

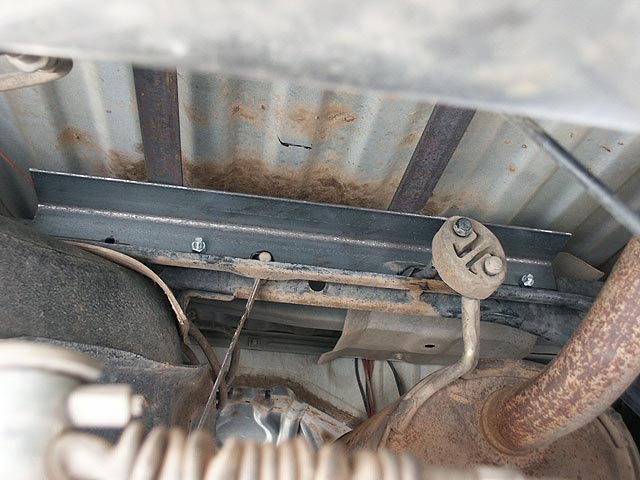

I started to create a frame for the air tank to mount to, first by fitting and trimming some angle-iron to one of the cross members under the bed. Then it was drilled for bolts. |
|

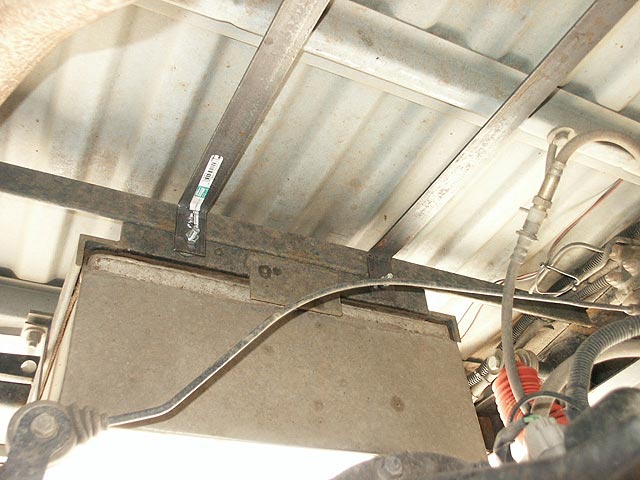

Two straps would bolt to the angle-iron, and then fasten to the cross member for the auxiliary fuel tank. These straps would be secured to the underside of the bed, and then the tank would be mounted to them. |
 |
|

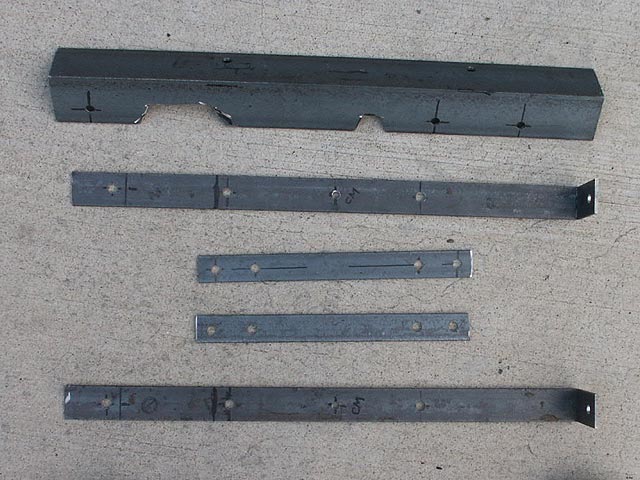

Here all of the pieces for the tank frame. The angle-iron, the two straps, and two braces that tie the straps together. |
 |
